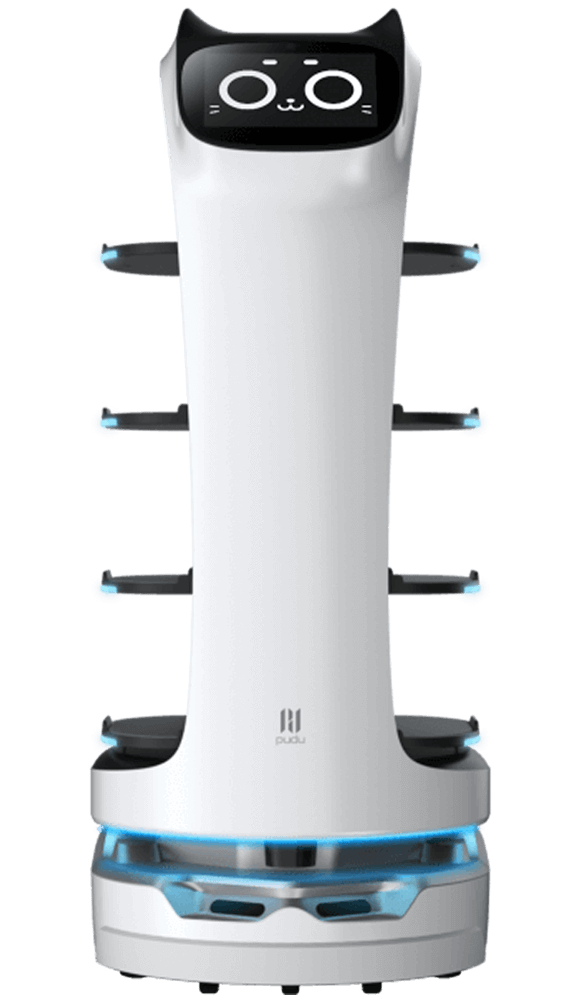

BellaBot

Premium Delivery Robot by PUDU Robotics

Introducing Bellabot – a premium delivery robot designed by PUDU Robotics for the pursuit of quality service.

Building on the strengths of its previous generation, Bellabot combines reliability and efficiency with enhanced human-robot interaction capabilities. Its innovative bionic design and charming, approachable appearance make it not only functional but also a delightful presence in any commercial setting.

Equipped with a range of advanced functions, Bellabot delivers an exceptional food delivery experience. From navigating spaces with ease to engaging customers seamlessly, it sets a new benchmark for service robots, redefining how businesses deliver efficient, high-quality service.

ENQUIRE NOW

Key Components of Bellabot

Visual Camera

An infrared camera enables real-time V-SLAM positioning for precise navigation.

3D Obstacle Avoidance Sensor

RGBD and dual-chassis cameras provide 3D perception to avoid obstacles.

Infrared Induction Tray

Four trays detect load for stable and efficient delivery.

ABS Industrial Plastic & Aviation Grade Al-Alloy

Durable and corrosion-resistant materials ensure a long-lasting body.

Dish Cover (Accessory)

Three-layer magnetic cover for safe and contactless delivery.

Customized Lidar

Lidar enables precise navigation in complex environments.

Independent Suspension

Auto-level suspension reduces bumps and stabilizes trays.

Power Exchange Technology

Quick battery replacement keeps Bellabot running continuously.

Intelligent Lattice Screen

The rear screen shows table numbers, messages, and instructions.

Product Features

Intelligent Multifunctional Delivery

Greeting Mode

Delivers food to multiple tables simultaneously, enhancing service efficiency.

Delivery Mode

Serves dishes to several tables at once, streamlining meal distribution.

Cruise Mode

Circulates along a preset route offering self-service drinks and desserts, and makes voice recommendations to customers.

Birthday Mode

Transports birthday cakes or gifts to customers, accompanied by customized background music for a special celebration.

Dish-return Mode

Collects used dishes and delivers them to the dish-return station or kitchen for cleaning.

Direct Mode

Performs one-way deliveries for efficient, targeted service.

Full-Scenario Navigation with Dual SLAM Solutions

BellaBot combines two SLAM navigation solutions to adapt to any environment with precision, ensuring smooth delivery and reliable obstacle avoidance in all scenarios.

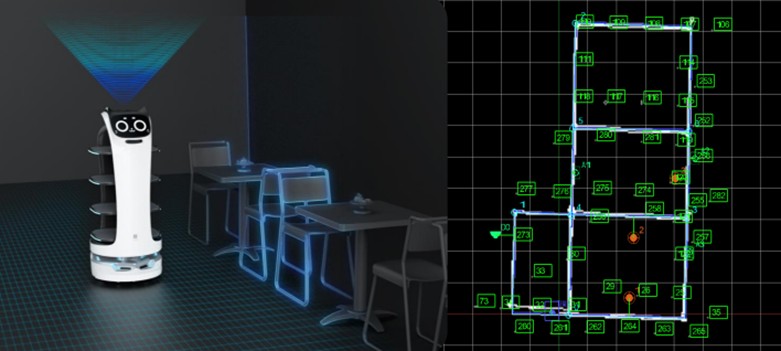

Visual SLAM
(Simultaneous Localization and Mapping)

Uses cameras to build a real-time 3D map of the surroundings while tracking the robot’s position for accurate navigation.

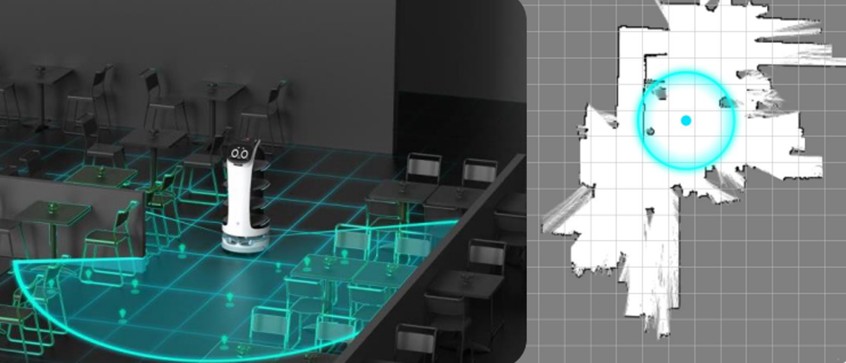

Laser SLAM
(Lidar-based SLAM)

Employs Lidar sensors to measure distances and create precise maps, enabling reliable positioning even in low-light.

Smart Interactions That Bring BellaBot to Life

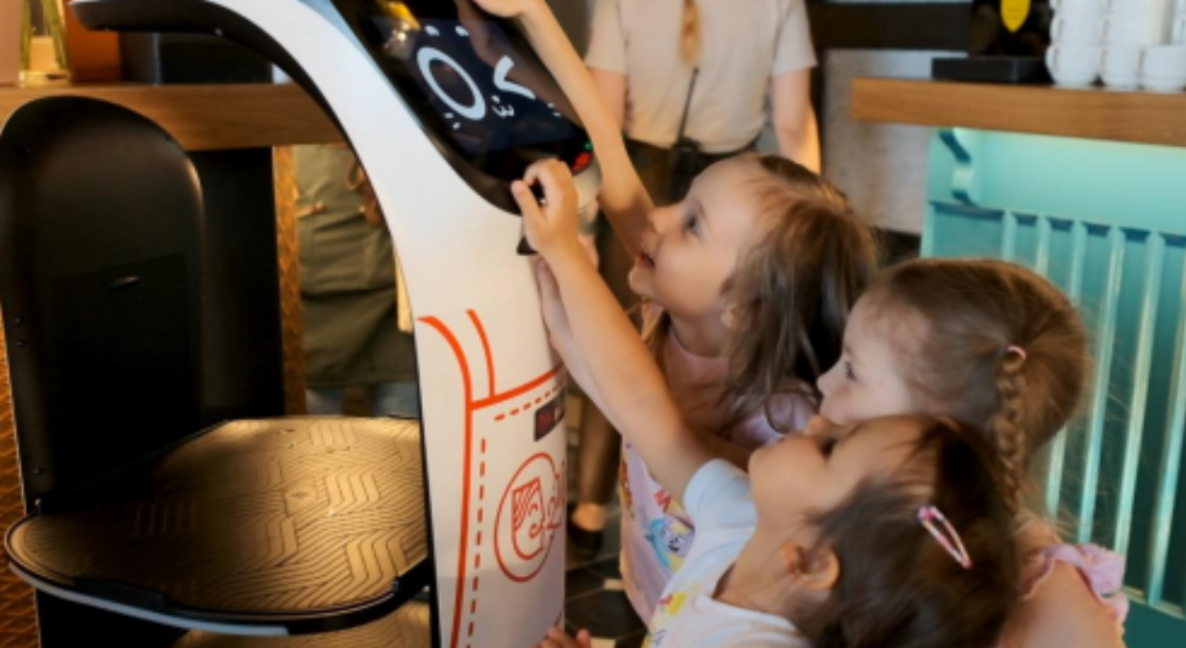

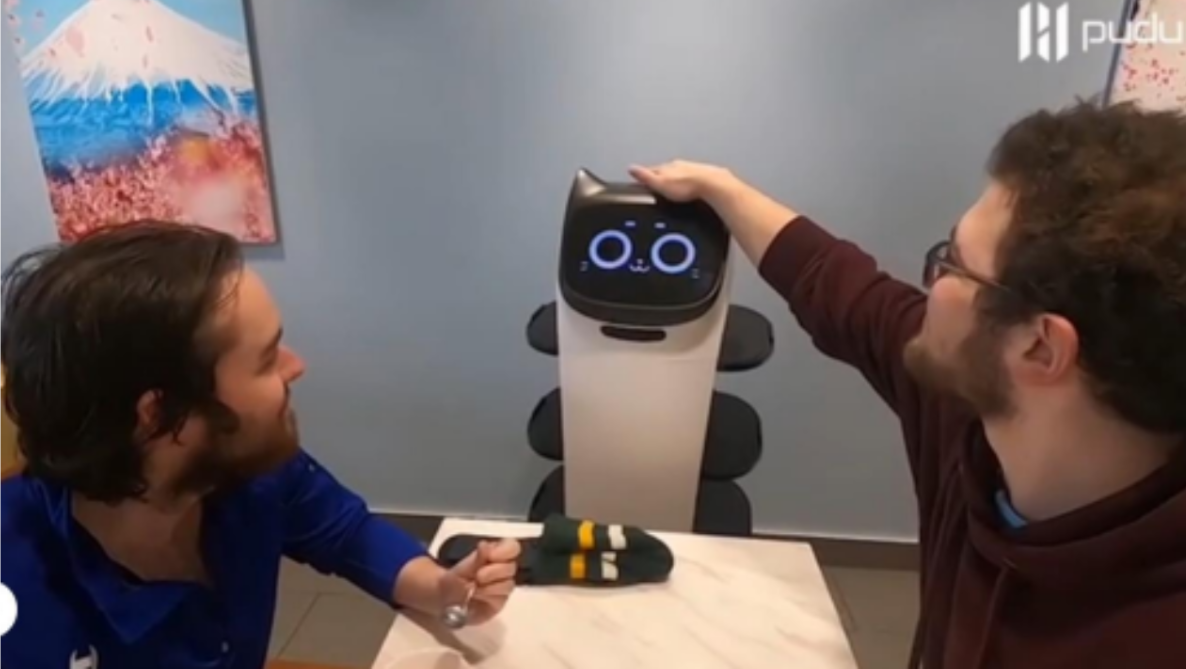

Touch Interaction

Special touch points on BellaBot’s ears and forehead let guests interact in a fun and unique way.

Light Interaction

BellaBot’s ears and tail display real-time lights to indicate different tasks and running status.

Expression Interaction

Dozens of original expressions bring warmth and personality to BellaBot’s interactions with guests.

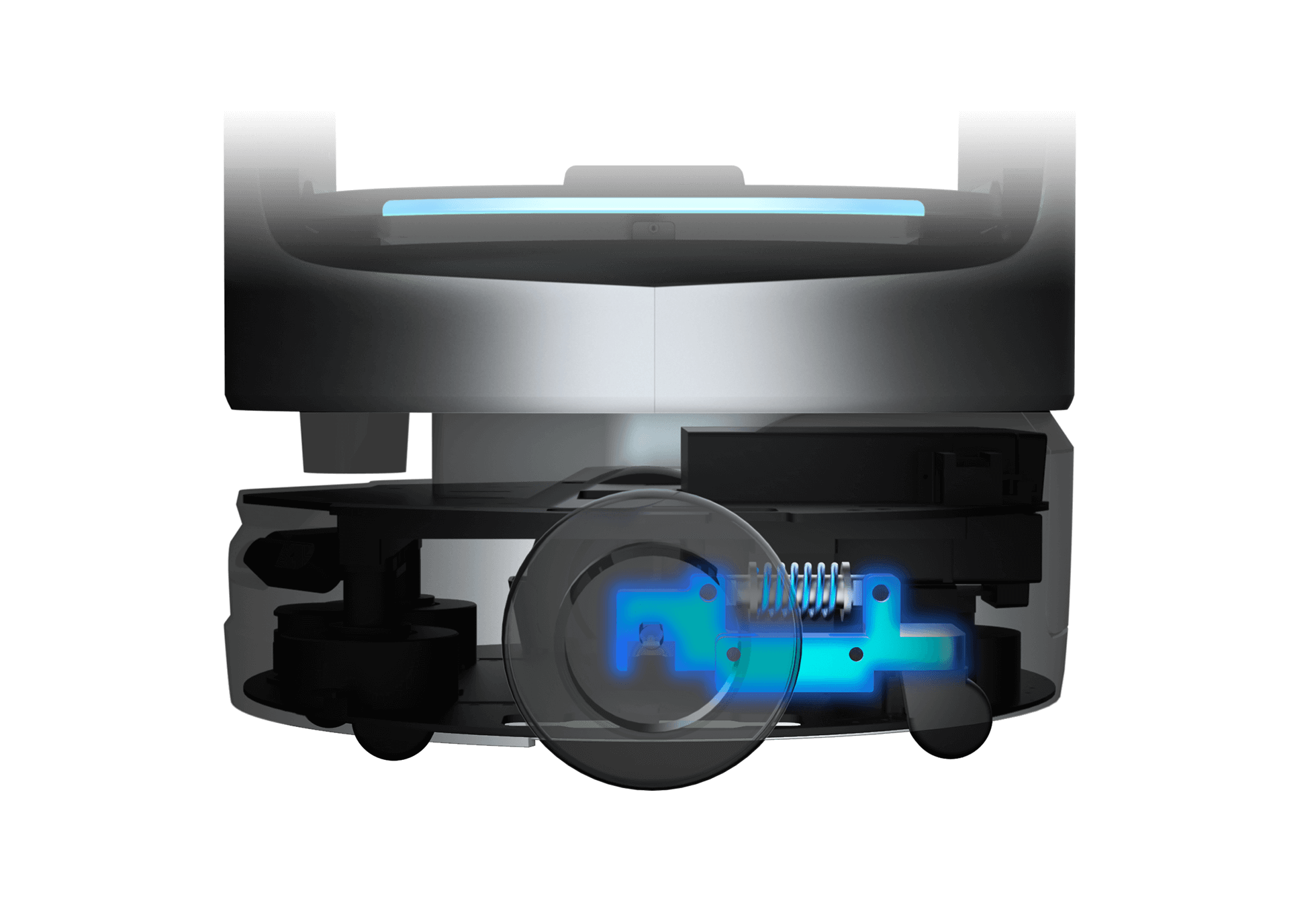

Steady Delivery Powered by Automotive Grade Independent Suspension

The automotive-grade adaptive variable suspension system adjusts damping based on road conditions and driving needs, keeping the resonant frequency optimal.

This ensures smooth and steady delivery even on uneven surfaces, improving stability and safety during operation.

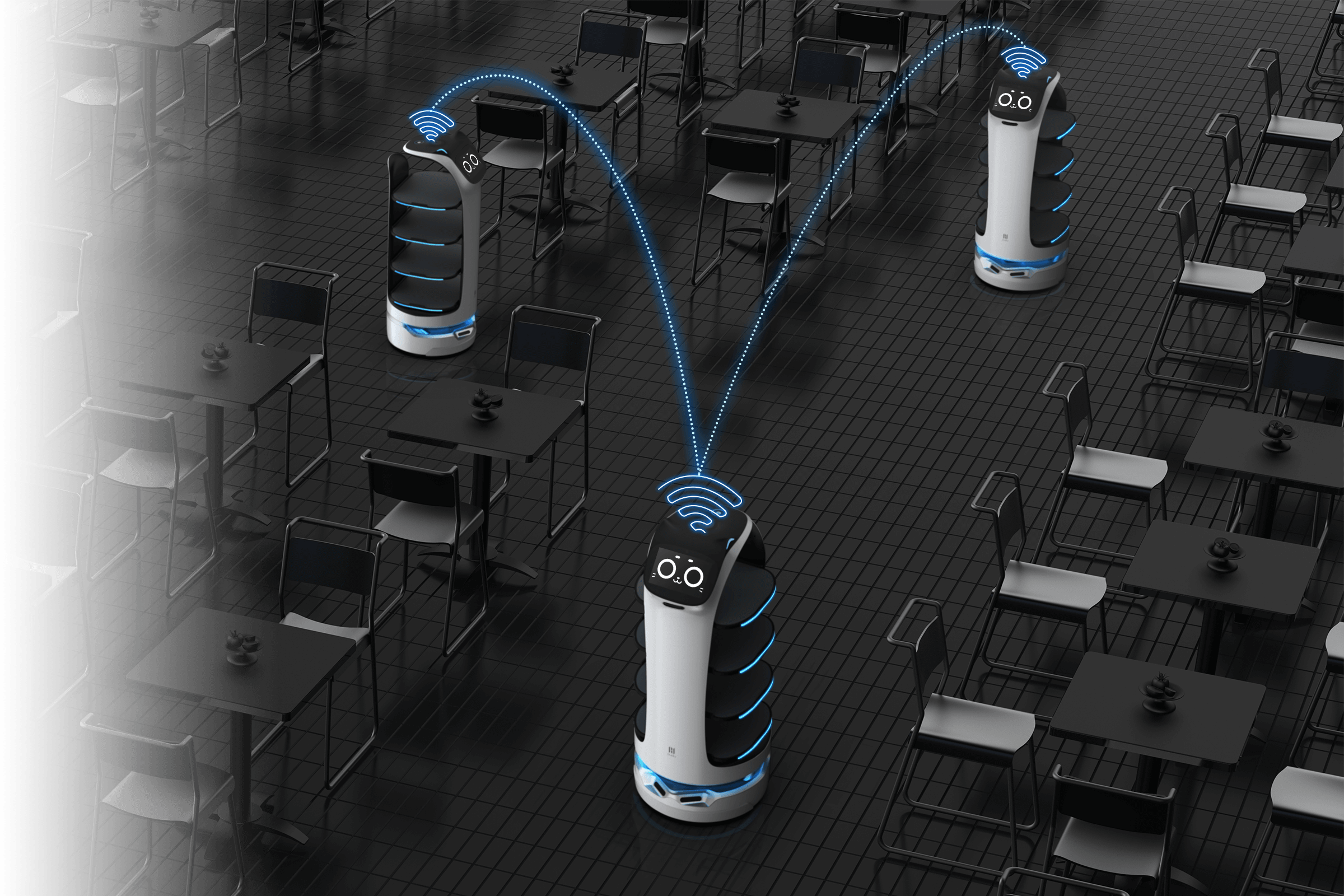

PUDU SCHEDULER

PUDU SCHEDULER uses a decentralized ad hoc network communication scheme, so each robot can communicate directly with others in the same network.

This enables quick calculations and decisions without relying on a central computing node, supporting efficient coordination.

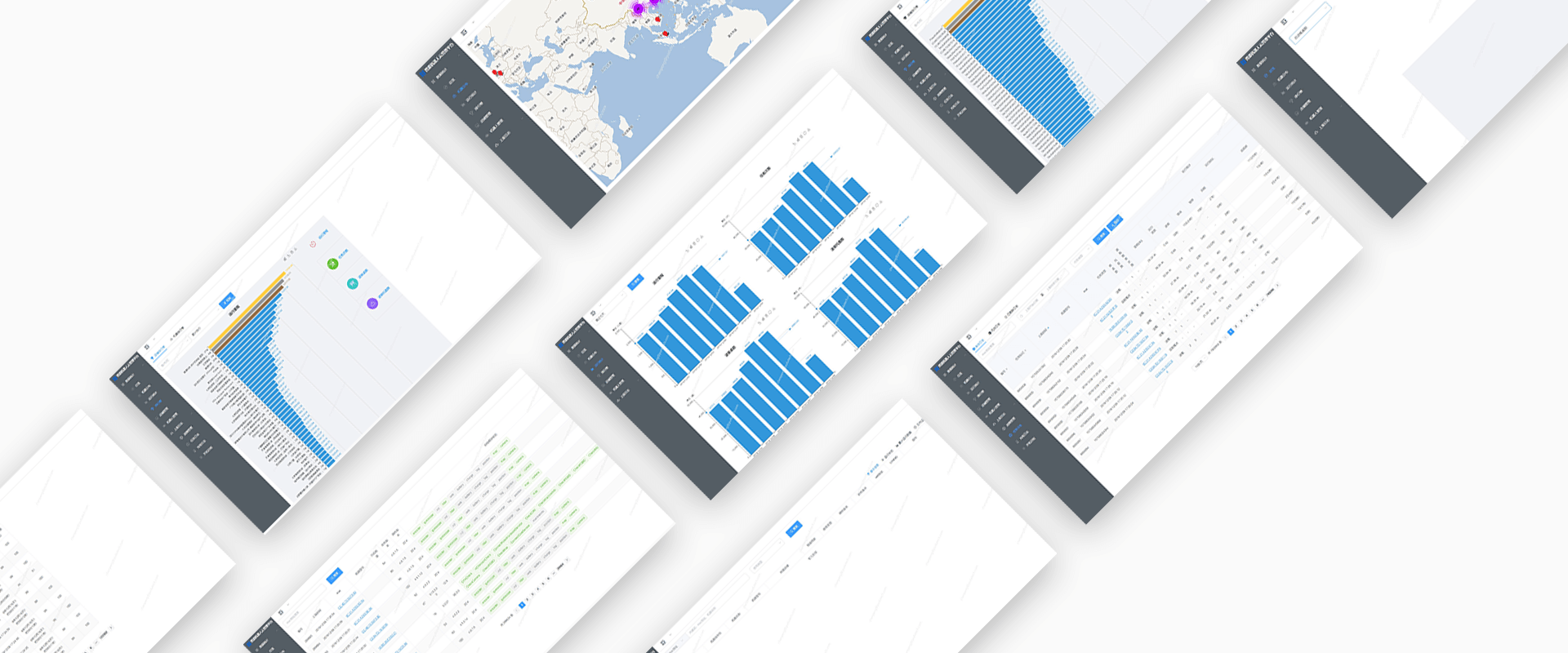

PUDU CLOUD

PUDU CLOUD provides cloud-intelligent services for PUDU robots, enabling smart catering operations. It supports business management, automated maintenance, and data collection to improve efficiency.

Product Specifications

Dimensions

565 × 537 × 1290 mm

Weight

55 kg

Load Capacity

Maximum 40 kg, 10 kg per layer

Tray Size

410 × 500 mm, with loading dimensions of 385 × 480 mm

Num. of Trays

4-layer tray, heights from top to bottom: 230 / 200 / 200 / 180 mm

Battery Capacity

25.2 V / 25.6 Ah

Quick-Release Battery

Easy battery removal and replacement using power exchange technology

Battery Life

12–24 hours (Replaceable Battery)

Charging Time

4.5 hours

Positioning

Supports marker and laser positioning

Obstacle Perception

Detects obstacles as small as 35 × 50 × 100 mm with 0.1 m minimum clearance

Dispatch Capacity

Can dispatch up to 20 robots simultaneously

Safety

Speed adjustable from 0.5–1.2 m/s, with a max 5° climbing angle

The Advantages of Deploying BellaBot

Enhancing Competitiveness through Innovative Marketing

BellaBot’s intelligent features and charming design attract more customers, increasing restaurant popularity and sales.

Delivering Safe, Efficient, and Intelligent Customer Experience

BellaBot provides greetings, guidance, and multi-modal interaction, ensuring faster service and shorter wait times for customers.

Streamlining Operations to Cut Labor Costs

With 24/7 operation, high loading capacity, and real-time insights from PUDU CLOUD, BellaBot reduces staff workload and management costs.

Freeing Waiters to Deliver Higher-Quality Service

By handling repetitive tasks, BellaBot allows waiters to focus on attentive service, improving customer satisfaction.
